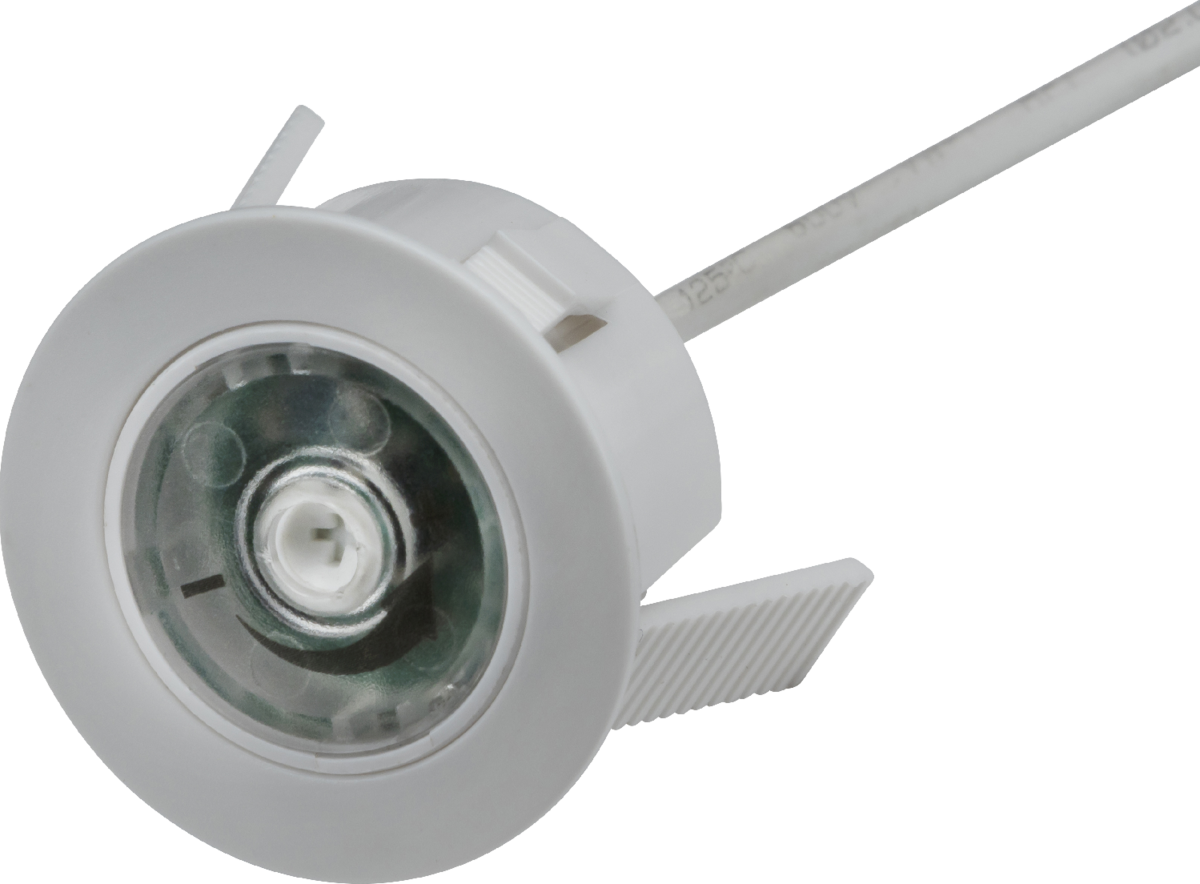

1-10V IP20 Daylight Sensor
£19.06 inc VAT
SKU: OS022
The ideal solution to saving energy. This daylight sensor is designed to maintain a consistent ambient light level by measuring the current light levels and then dimming the load via 1-10V. The lux settings can be easily set via a potentiometer on the front of the sensor. Suitable for panel-mounting, recessed and surface-mounting, with the appropriate accessories included with the sensor. The sensor can easily be wired with other motion sensors to achieve full automation of the installation.
- 1-10V*
- IP20
- Max load 50mA, up to 25 sources according with IEC 60929
- Lux threshold adjustable 10-500lux
- Dimming range 10% - 100%
- Pre-wired with 750mm of cable
*must be used with a suitable 0-10V/ 1-10V LED load
Free next day delivery over £150. Order by 1pm.
- Trade pricing available
- In stock, ships fast
- 2 year warranty
About this product
| Voltage | 1-10V |
|---|---|
| IP rating | IP20 |
| Finish | White |

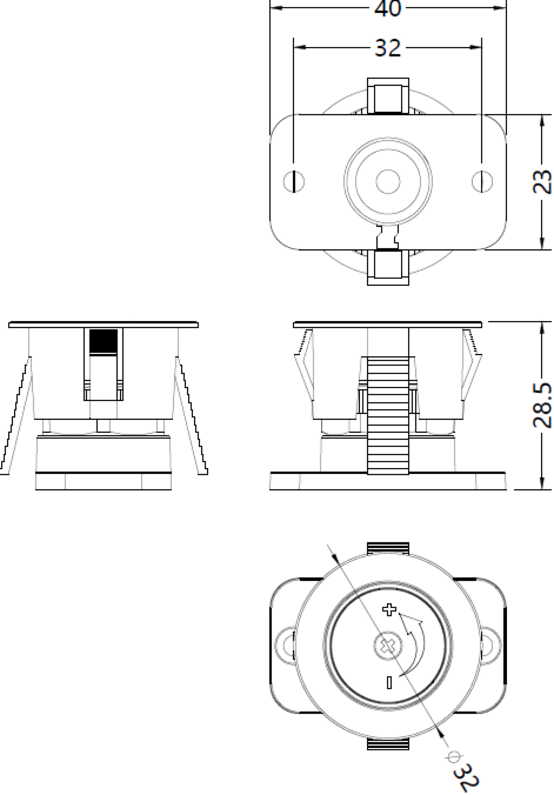

| Cut out | 18mm |
| Construction | Polycarbonate |
| Diameter | 32 |
| Height (mm) | 28 |
| Width (mm) | 32 |
| Warranty | 3 Year Warranty |
Installation
Follow manufacturers intstructions inside your product once it arrives. Installation should only be carried out by trained professionals when dealing with wiring and electrical units.
Warranty
3 Year Warranty
Delivery information
Technical documents
Downloads
