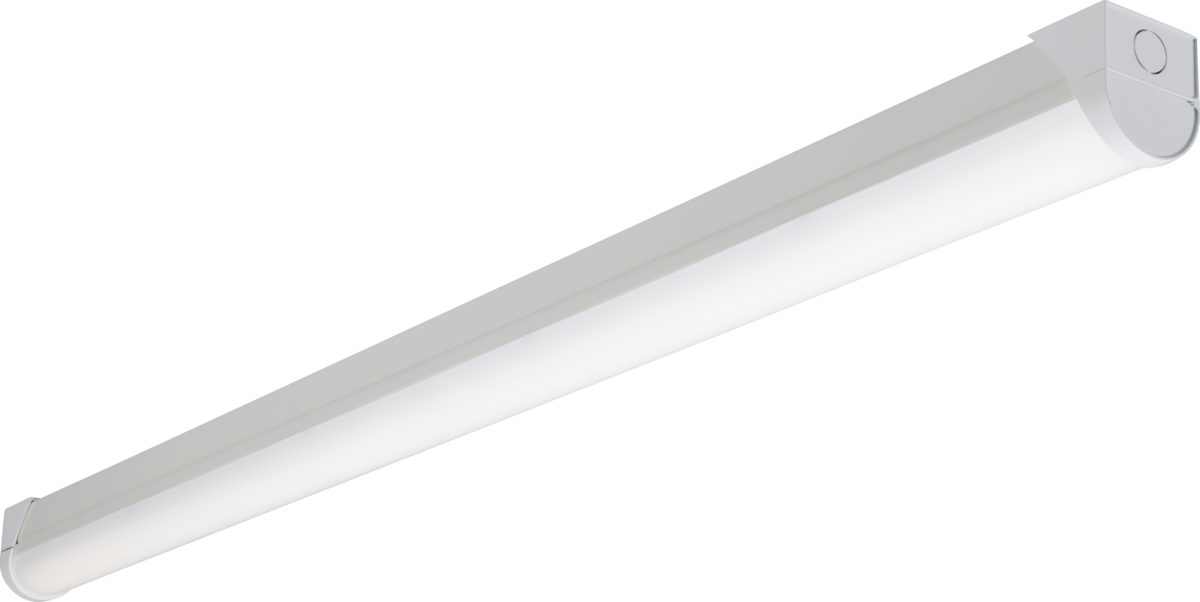

Modular CCT and Wattage Adjustable Batten
£33.77 – £44.92 inc VAT
SKU: BATMCW4
Modular design: Whether the project needs a standard batten, an emergency option or a microwave sensor, the range covers it all with the help of plug-in modules. Choose from various lengths and wattages to suit specific project requirements.
Versatility: Customize the colour temperature with popular CCT options of 3000K, 4000K, and 5700K. Adjust the wattage to 17W, 22W, 26W, or 31W. Mix and match to perfectly meet your project’s specific needs.
High Efficiency: The battens deliver up to 150 lm/W, providing bright illumination while minimizing energy consumption. This superior performance is achieved by utilizing the latest LED chip and Tridonic driver technology.

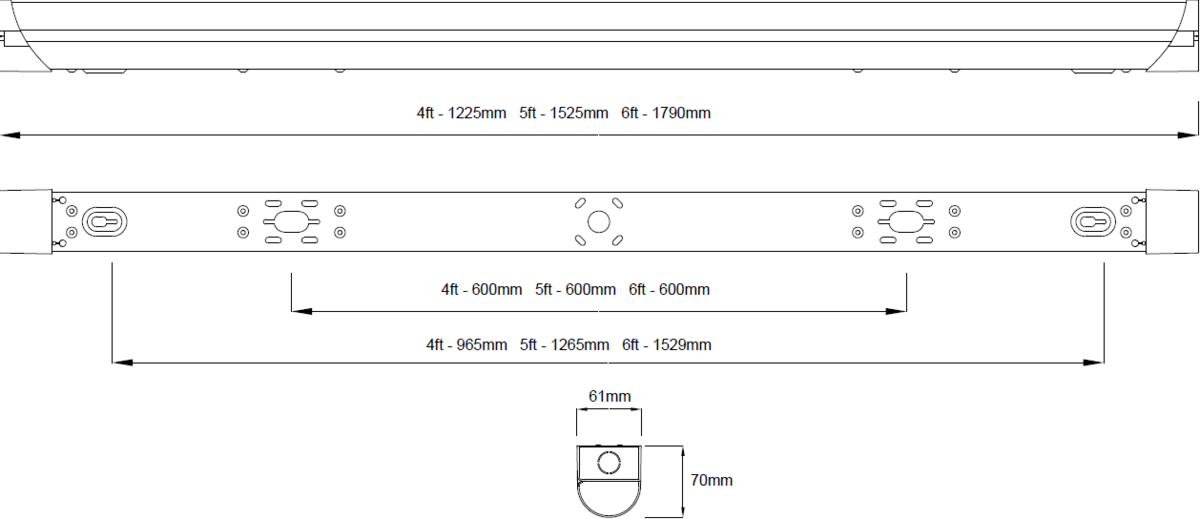

Quick installation: The hinged tray mechanism ensures easy installation. Conduit entries, standard 600mm fixing points, and BESA compatibility ensure that the range will retrofit any installation and allow flexibility for new projects.
- Optional modular microwave sensor, MODMWS
- Optional modular emergency conversion kit, MODEMKIT
- High efficiency
- Colour adjustable, 3000K/ 4000K/ 5700K
- Wattage adjustable, 17W/ 22W/ 26W/ 31W
- Powered by Tridonic LED drivers
- Rear and end conduit fixings
- Standard 600mm centres and BESA box compatible
- Hinged gear tray
- Push-fit loop in-loop out terminal block
- 17W - 2,600lm at 4000K
- 22W - 3,300lm at 4000K
- 26W - 3,900lm at 4000K
- 31W - 4,500lm at 4000K
Free next day delivery over £150. Order by 1pm.
- Trade pricing available
- In stock, ships fast
- 2 year warranty
About this product
| Max. wattage | 17W, 22W, 26W, 28W, 31W, 34W, 41W, 49W |
|---|---|
| Voltage | 230V |
| Lumens | 2500lm, 3300lm, 4000lm |
| Colour temperature (K) | 3000K, 4000K, 5700K |
| CRI | ≥85 |
| Beam angle | 120 |
| IP rating | IP20 |
| Dimmable | No |
| Finish | White |
| Lamp included | Yes |
| Diffuser | Opal |
| Construction | Pressed steel, & polycarbonate |
| Width (mm) | 61 |
| Warranty | 7 Year Warranty |
Installation
Follow manufacturers intstructions inside your product once it arrives. Installation should only be carried out by trained professionals when dealing with wiring and electrical units.
Warranty
7 Year Warranty
