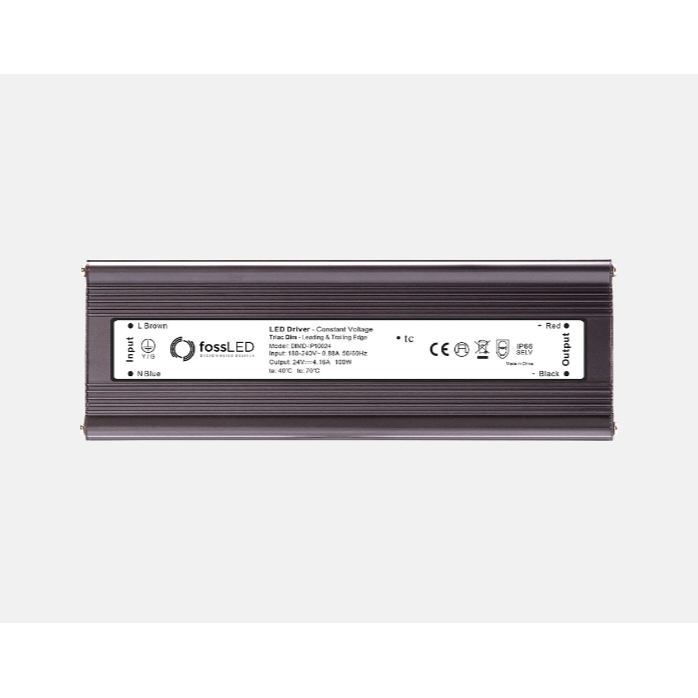

24v Mains Dimmable Driver IP66
£97.86 – £194.23 inc VAT
SKU: DIMD-IP10024
|
Output Power (click for spec sheets) |
100W | 150W | 200W | 250W |
| Output Voltage | 24V | 24VDC | 24V | 24VDC |
| Output Rated Current | 4.17A | 6.25A | 8.33A | 12.5A |
| Input Voltage Range | 180 - 264VAC | 180 - 264VAC | 200 - 240VAC | 200 - 240VAC |
| Input AC Frequency | 47 - 63Hz | 47 - 63Hz | 47 - 63Hz | 47 - 63Hz |
| Efficiency | >83% | >86% | >87% | >89% |
| Capacity | 5 - 100% | 5 - 100% | 5 - 100% | 5 - 100% |
| Input AC Current | 1.05A | 1.51A | 1.99A | 2.0A |
| Inrush Current |
41.6A (Twidth =700µs) |
56A (Twidth =1.18ms) | 62.4A (Twidth =880µs) | 60A (Twidth =130µs) |
|
Dimensions (mm) L x W x H |
230 x 70 x 43 | 256 x 78 x 47 | 256 x 78 x 47 | 276 x 78 x 47 |
Free next day delivery over £150. Order by 1pm.
- Trade pricing available
- In stock, ships fast
- 2 year warranty
About this product
| Wattage | 100W, 150W, 200W, 300W |
|---|---|
| Voltage | 24V |
| IP rating | IP67 |
| Dimmable | Dimmable |
| Warranty | 3 Year Standard and 5 Year Extended Manufacturers Warranty |
Installation
Follow manufacturers intstructions inside your product once it arrives. Installation should only be carried out by trained professionals when dealing with wiring and electrical units.
Warranty
3 Year Standard and 5 Year Extended Manufacturers Warranty
